Pilotsmith India Pvt. Ltd.

Food Processing

Food Processing

Invent Image

De-stoner with Aspirator

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
It is a combination of three equipments namely aspirator with cyclone separator, de-stoner and shaker. Each equipment can act independently or in groups according to the type of impurities to be removed. Accuracy of cleaning is above 97%.	150-1000 Kg/ hr.	2 – 7.5 HP.	To remove impurities from the cereals, grains, spices, etc.	Food, spices and Ayurvedic processing industry	MS or SS

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Vibro sifter is used for grading powders of different particle size. This can be achieved by placing additional deck one over the other of different mesh size	50 – 1000 kg/hr	0.25- 2 HP.	Grading of powders	Food and Spices industry	Contacts parts in SS, remaining in MS

Invent Image

Continuous Rice Washer

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Continuous rice washer is used for washing rice or similar materials in bulk quantity. Water sprayed continuously into the chamber, removes the impurities from the raw material	1250 Kg/ hr.	3 HP.	To remove impurities from rice, wheat etc.	Food processing industry	Contacts parts in SS, remaining in MS.

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Huller is used for de husking and polishing of coffee, paddy and similar types of beans and grains. Accuracy of separation is around 90%. A fan box separates seed from the husk.	5 – 50 kg /hr	0.5 – 2 HP	De-husking and polishing of paddy,coffee and similar type of beans and grains	food and spice industry	Fully in SS

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
The machine removes floating impurities, sand particles below 800 microns, dust and other washable impurities. It is also used for soaking rice to the required level of moisture and rinsing the excess water. It consists of a perforated vessel with stirrers. The washed material can be kept in the same vessel for soaking. Then it is rinsed and discharged through bottom for further processing.	50 to 250 kg/batch	0.25-1.5 HP	Washing	wheat, ragi, dried grapes, dates etc	Contact parts in SS(AISI 304),remaining in MS

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Sautiner is a jacketed vessel provided with stirrers which roasts powders, pulses and prepares semisolids. The heating media generally used is thermic fluid or steam.	50 – 1500Ltr	0.5- 15 HP	Roasting and preparation	Food and ayurvedic industry	Contacts parts in SS, remaining in MS

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
It is a machine similar to Uruli roaster with a difference that it uses fire wood (briquette, coconut husk or any other agro waste) as fuel. The machine is provided with a stationary vessel and a rotating stirrer.	20 - 100 kg/ batch	0.25 - 3 HP	Roasting	Food and Spices processing industry.	contact parts in SS(AISI 304), remaining in MS

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Coffee roaster is used for roasting coffee beans batch by batch. The coffee bean fed to the roasting chamber is roasted and discharged to a perforated cooling tray, where it is cooled by a blower and stirrer. Generally LPG firing system is supplied along with the equipment.	10 – 100kg/batch	0.5- 10 HP	Roasting of coffee beans	Beverage industry	Contacts parts in SS, remaining in MS

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Drum roasters are unique machines that make sure the spices retain their flavor and masalas, their traditional taste.The mode of firing generally used is LPG.	5 - 120 kg/ batch	0.25 - 2HP	Roasting and Coating	Food and Spices industries	Contact parts in Aluminium,remaining in MS

Invent Image

Jacketed Kettle

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Jacketed vessel is used for heating liquids like fruit pulp,ayurvedic medicine etc, by passing externally generated steam through a sealed “vacuum” system. Kettles are designed according to their constructional features. They are: (a)Tiltable kettle (b) Fixed kettle (c) Fixed kettle with stirrers.	20-2500 Ltr/batch	0.5- 10 HP	Preparation of semisolid materials	Food and ayurvedic industry	Contacts parts in SS, remaining in MS

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Tray Dryer is used for drying as well as baking of the raw material. The raw material kept in the tray is heated by the hot air, generated when air is passed through heated coil and circulated by fan.	6 - 96 Trays	2 – 12 kw	Drying	Food Processing, drying applications	Contact parts in AISI 304 SS/MS/AL

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Fruit Mill is used to crush fruits and vegetables for getting better juice extraction when squeezed in the fruit press. This is also used for grinding chili, onion etc to form paste.	5 - 500 Kg/ hr.	2 – 5 HP	Juice extraction	Canning industry, Food processing, Ayurvedic medicine	Contact parts in (AISI 304) SS, remaining in MS

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Hammer mill is recommended for powdering grains, chemicals, herbs, ores, minerals etc., from fine to coarse powders in bulk quantity. The machine is provided with cyclone dust collector for easy collection of product at discharge end.	70 - 800 Kg/ hr	15-75 HP.	size reduction of the cereals, grains, spices, etc	Food, spices and ayurvedic industry	MS or SS

Invent Image

Mini Pulverizer

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Mini pulverizer is a multipurpose machine for size reduction by using beaters and liners. The fineness of the product can be achieved by changing the sieves.	5 - 500 Kg/ hr.	2 – 7.5 HP.	Size reduction of the cereals, grains, spices, etc	Food, spices ayurvedic and chemical industry	MS or SS

Invent Image

'O' Trough Blender

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
In an 'O' trough blender material moves radially inside the vessel. The 'O' trough blenders are approximately 25% more expensive than 'U' trough blender. But this design ensures demounting of high moisture of non flowing powders on its side walls	10 – 3000kg/batch	0.25- 20 HP	Blending of powders	Food,spices and chemical industries	Contacts parts in SS, remaining in MS

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Finger Blenders is used for soft blending of light flakes or similar products. Main working parts are rotary drum, rotating shaft fixed with stirrers and an easily removable lid. The products blended in this equipment posses extremely good texture and appearance.	5-50kg/batch	0.25- 3 HP	Blending of soft products	Food,ayurvedic & chemical industry	Contacts parts in SS, remaining in MS

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Mass mixers are ideal for mixing powders with semi solids. Compared to other blenders, the power of motor will be higher in mass mixers. Two types of mass mixers are available in different capacities of handling, namely single trough mass mixer and double trough mass mixer. Double trough mass mixer is 75% expensive than single trough mass mixer, but mixing is faster and handles high volumes easily.	10 – 500 kg/batch	1 – 30 HP	Mixing	Food industry, ayurvedic industry, pharmaceutical industry	Fully in AISI 304 SS

Invent Image

Vertical Ribbon Blender

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Vertical ribbon blender is recommended where we need faster blending in small batches. The raw material from the bottom of the vessel is lifted up and down by the rotary movement of the spiral ribbons. The ribbons placed in vertical position can be easily removed before cleaning. This blender can mix batches as small as 25% of vessel capacity	10-250 kg/batch	0.5-7.5 HP	Blending	Food,spices and chemical industries	Contact parts in SS, remaining in MS

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Pickle blender is used for mixing ingredients that are used in the preparation of pickle.	10 – 3000 Kg/batch	0.5-20 HP	Blending	Food processing industry	Contacts parts in SS, remaining in MS

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Colloid Mills are used for further grinding of sediments and fiber contents in the pulp, medicines etc to form a clear liquid. The product is processed by high shear, pressure & friction between the stator & rotor. It is also subjected to intensive vibration which exerts their force on it by means of pressing & releasing actions. This processed product continuously leaves the mill through the drain pipe, if required, it can be re-circulated.	10-250 kg/hr	0.5- 10 HP	Grinding of sediments and fibers from semisolids	Food,beverages and ayurvedic industry	Contacts parts in SS, remaining in MS

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Fruit pulper is designed to meet extraction of pulp from fruits and other pulpy items. This machine can also be used for pepper husking and spices washing.	200 – 1500 kg/batch	1.5-3 HP	Extraction of pulp	Fruit processing industry	Contacts parts in SS, remaining in MS

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
This machine is used for sealing various pre-made pouches. It can handle up to 9000 packets per shift.PID controller is provided to keep the temperature constant which ensures perfect sealing even for on thin pouches.	9000 pkt/shift	440V / 3 phase or 220V / 1 pha	Sealing of packets	harmaceuticals, chemical industries, dairy, cosmectic, food & groceries, seed processing units, auto	Fully MS

Invent Image

Mini Band Sealer

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
This machine is ideal for small scale manufacturing units.PID controller is provided to keep the temperature constant which ensures perfect sealing even for on thin pouches. The conveyor speed of this machine is adjustable.	9000 pkt/shift	440V / 3Ø or 220V / 1Ø	Sealing	Food and Spices industries	Fully MS

Invent Image

Pedal Sealing Machine

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
This machine is suitable for flour mills and bakery units. Sealing jaw is fitted with electric heater coil 300 W.	2500 pkts/shift	440V / 3 phase, 220 V / 1phase	Packing	Food,beverages and chemical industries	Fully MS

Invent Image

FFS Packing machine

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
The entire procedure from bag forming, filling and sealing to cutting and packaging is fully automatically operated in this machine. The packing speeds are adjustable. Filling range is 5-500gm.	40 pkts/min	0.5- 2 HP.	Filling and packing	Food,cosmetic and chemical industry	Contacts parts in SS, remaining in MS

Invent Image

Semi Solid Dozer(SSD)

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Semi Solid Dozer is simple, user friendly in design, highly accurate and easily operatable. It is an innovated product for filling technology. The machine is tested under various parameters to ensure that it is free from flaws. This is suitable for packing Semi Solids,Pickles,Creams,Leham, Curry Pastes from 5 gm 2 kg. Accuracy of dozing is guaranteed up to maximum 1 gram error irrespective of volume. It can be freely integrated to the fully automatic type also.	50- 1000 gm/doze	0.5-3 HP	Filling of Semi Solids, Pickles, Creams,paint, Putty, Thick oils etc	This machine is used for filling of semi solid materials like pickle, jam, sauce, cake batter, cream	Contact parts in SS,remaining in MS

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Screw elevator is used for carrying raw materials from a lower level to an elevated level.Bulk quantity of materials are handled in this machine.	100– 5000kg/hr	0.25- 5 HP.	Lifting of raw materials or products	Food, ayurvedic, spices, feed and chemical industries	Contacts parts in SS, remaining in MS

Invent Image

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Silos used for storage of raw materials and products in bulk quantities.	500 – 5000 Kg/batch	-	Storage	Food, Fruit and Ayurvedic industry	Contacts parts in SS, remaining in MS

Invent Image

Vegetable Cutter

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Vegetable cutter is used for high speed cutting of vegetables into slices or cubes.	25 – 1000 Kg/batch	3 HP	Cutting of vegetables	Food and ayurvedic industry	Contacts parts in SS, remaining in MS

Invent Image

Cooling machine

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
After roasting or grinding, the powder for packing has to be cooled with in a period of time. For this purpose cooling machine is used. This process is achieved with the help of a blower accompanied by a water jacket.	100 – 1000kg/hr	2 – 10 HP.	Cooling	Food and Spices industry	Contacts parts in SS, remaining in MS

Invent Image

Thermic Fluid Heating System

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Thermic Fluid Heating system with Electric coil and automatic temperature control panel board.	10000 - 68000 KCAL	12 - 80 KW	For heating Thermic Fluid	Heating, Roasting and Cooking.	Mild Steel

Invent Image

Control Panel Board

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Cubicle Control Panel for electrical equipment. All components used in the Control panel is L&T or similar standard.	1 Hp- 1250 Hp	1 Hp- 1250 Hp	Control Panel Board for electrical equipment.	All processing Industry	MS / SS

Invent Image

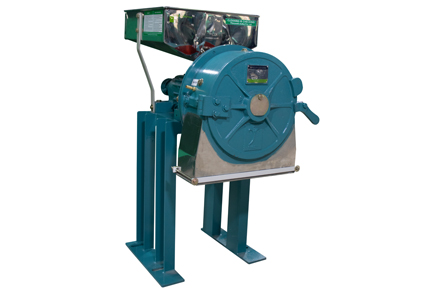

Pulveriser Single Stage

Invent Image

Product Description	Capacity	Power	Purpose	Applications	Materials Of Construction
Mini Pulveriser is a multipurpose machine for size reduction by using beaters and liners. The fineness of the product can be achieved by changing the sieves.	5 - 500 Kg/ hr.	2 – 7.5 HP.	Size reduction of the cereals, grains, spices, etc	Food, spices ayurvedic and chemical industry	MS / SS
